Configure the source system

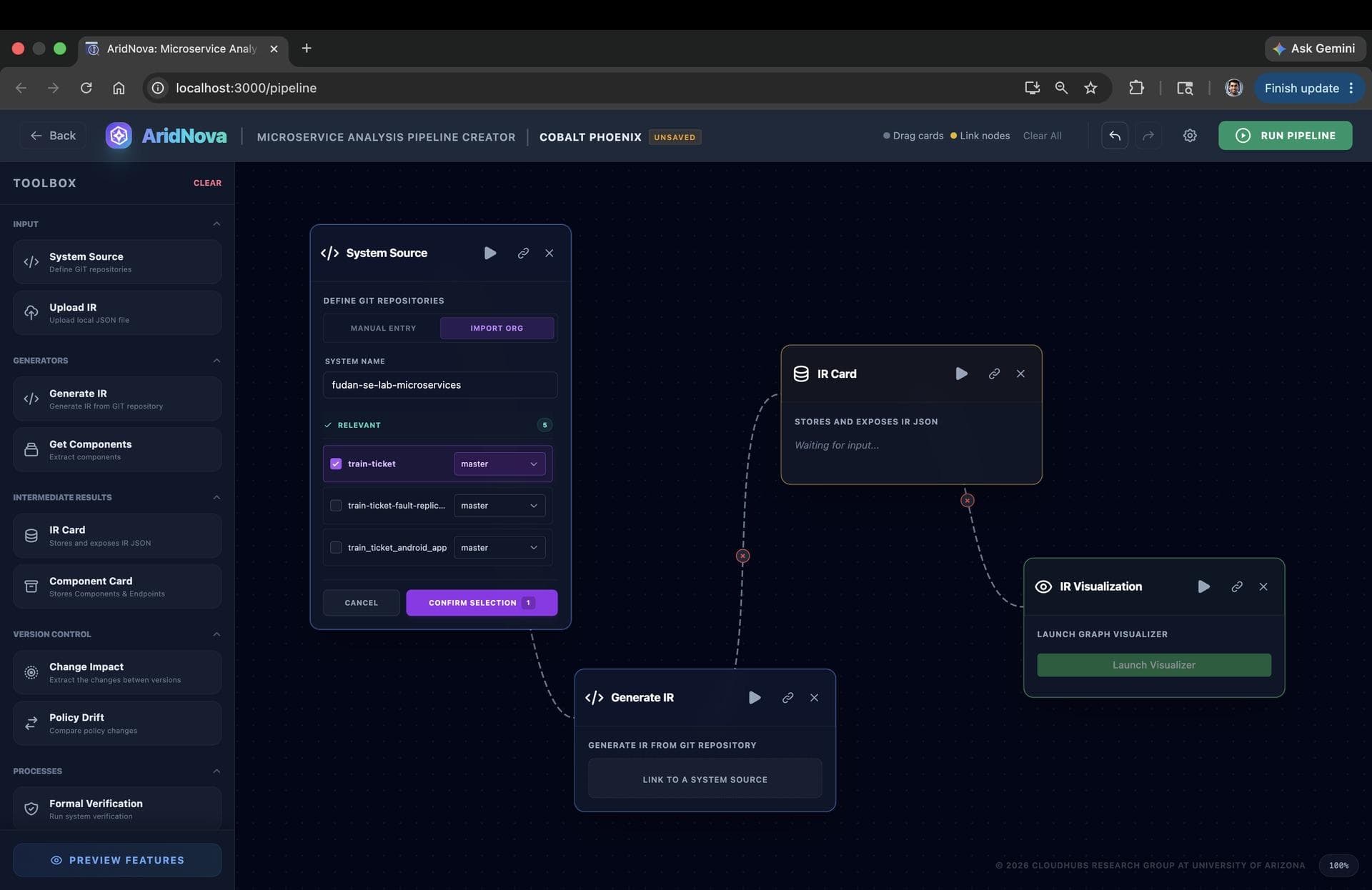

The System Source card is where every analysis begins — it anchors the pipeline to the code you want to examine. It can point at a single repository, import an entire GitHub organization, or accept CSV metadata when you already have the system details on hand.
System Source supports manual entry, organization import, branch selection, commit selection, and CSV upload. Choosing a specific branch and commit pins the whole pipeline to one version, so every piece of evidence you produce maps back to an exact point in your release history. Once the selection is confirmed, Generate IR can consume the card directly.
Steps and outcomes
| Action | Expected output | Customer value |
|---|---|---|
| Enter repository or organization details | The source card displays the selected system and repositories. | The tutorial starts from real source context. |
| Choose branch and commit | The pipeline ties analysis to a specific version. | Version-specific evidence supports release reviews. |
| Confirm selection | Generate IR can consume the source card. | Downstream cards receive a clean input contract. |
